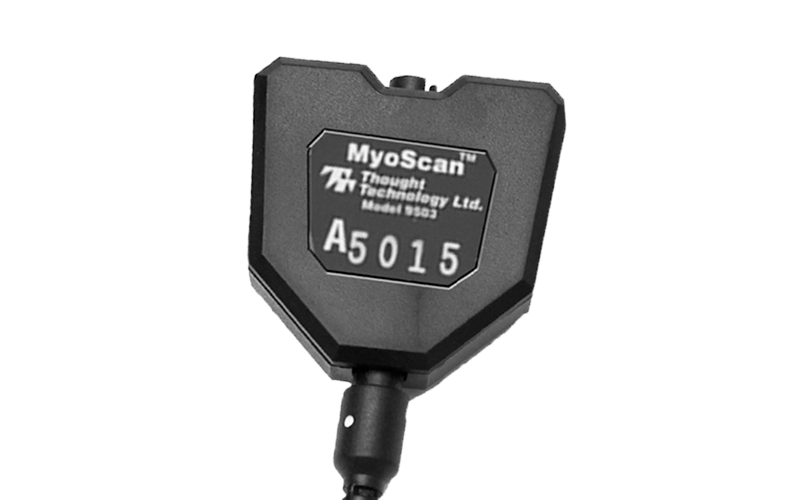

MyoScan Sensor

Product Overview

The MyoScan is a pre-amplifier of surface electromyography (sEMG). Surface EMG measures muscle activity by detecting and amplifying tiny electrical impulses generated by muscle fibers when they contract. The sensor detects and averages a complex addition of impulses from many muscle fibers within the recording area of the sensor, contracting at different moments and at different rates. The number of muscle fibers that are recruited, and the rate of firing (contraction) of each fiber, during any given contraction depends on the force required to perform the movement. Because of this, the intensity (amplitude) of the resulting electrical signal, under certain condition, is proportional to the strength of contraction.

Basics of Surface Electromyography Applied to Psychophysiology	The Basics of Surface Electromyography Applied to Physical Rehabilitation and Biomechanics

Technical Specifications

• Size : 37mm x 37mm x 12mm (1.45" x 1.45" x 0.45")
• Weight : 15g (0.5 oz)
• Input Impedance : > 10¹²Ω in parallel with 10pF
• Signal Input Range : 0 – 2000 µV RMS
• Sensitivity : < 0.1 µV RMS
• CMRR : > 130 dB
• Channel Bandwidth : 10 Hz-1 kHz
• Signal Output Range : 0 – 1.0 V RMS
• Input / Output Gain : 500
• Supply Voltage : 7.26 V (±0.02 V)
• Current Consumption : 0.7 mA (±0.25 mA)
• Accuracy : ±0.3 µV RMS plus ±4% of reading @25°C to 30°C

Electrical Compatibility

sensor is designed to coexist with other Thought Technology bio potential sensors such as S????? EEG sensor, ST9305M, ST9306M EKG sensor or SA9309M Skin Conductance sensor. To ensure correct MyoScan sensor operation, if sensors from another manufacturer are in the same electrical circuit and connected to the same subject, their electrodes must function at a voltage within the specified operating bias range, 1.0 to 3.0 volts above sensor ground. To check whether another sensor is interfering with the MyoScan sensor operation, connect and disconnect the other sensor from the subject, and note whether this causes a change in the MyoScan sensor signal level, or whether connection of the other sensor appears to cause any signal artifacts in the EMG signal.

Interfacing with 3rd Party Data Acquisition Systems

General Recommendations

DAQ requirements:

• Recommended minimum 16-bit ADC
• Input range
  • Connected using the product SE9405AM Sensor Isolator: 0-5V (unipolar) or ±5V
  • Direct connect with AC coupled output and DC bias resistor: ±1.25V or ±2.5V
• On some data acquisition systems, using differential input mode, and oversampling followed by digital low pass filtering, can be helpful to reduce noise levels.

Simplified Transfer Function

•      Output voltage from input voltage
•      Input voltage from input voltage

Connectivity

The recommended interface (with electrical isolation) is the one using the TT Sensor Isolator 4∞ST9405AM.

The TT Sensor Isolator 4∞ (ST9405AM) is an interface device providing electrical isolation at a level of 4kV, equivalent to two Means of Patient Protection under IEC 60601-1. It provides a battery powered regulated 7.26 volt supply to connected sensors, and allows Thought Technology sensors to be safely interfaced with analog inputs of line-powered systems, such as computers with DAQ cards. Note that this device isolates only between sensors and the DAQ interface, not between different sensor channels.

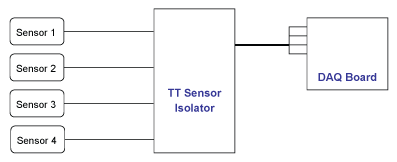

The TT Sensor Isolator 4∞ can interface up to 4 sensors to a DAQ card. TT Sensor Isolator 4∞ can be connected to the DAQ card in two ways:

• via two stereo jacks, or
• via a DB-15 connector; a BNC interface cable (SA9409BNC) or a pigtail cable (SA9409PGT) can be provided with the unit.

For more detailed information on the Sensor Isolator 4∞, consult the Thought Technology website or contact the sales department or your distributor.

If interfacing directly with a third party Data Acquisition Systems, please note the following:

WARNING: Thought Technology cannot guarantee that user setups connecting Thought Technology sensors (or preamplifiers) to non-Thought Technology devices are electrically safe for patient connection. In particular, if a patient-connected sensor is connected to any line powered device, an elevated risk of electrical shock may be present, unless all devices to which the sensor is electrically connected implement medical grade patient isolation from any power supply mains.

CAUTION: Connection of customer supplied circuits to Thought Technology sensor products has the potential to damage the sensor. Such damage is not covered by warranty.

The sensor cable contains 4 color coded conductors. The following table shows the color coding and connector pin assignment. To make interfacing cables for custom set-ups, a single sensor cable may be cut in half. Both sides may then be used by stripping the outer insulation of each required conductor.

Notes:

The nominal supply voltage for this sensor is 7.26V. The sensor can safely be used with a supply voltage of up to 9V. However, as the sensor is calibrated with a 7.26V supply voltage level, changes in gain and offset may be expected when operating at a different supply voltage.

Sensor Placement

Skin Preparation

Proper skin preparation is important to get a good signal and minimize artifacts. Before applying electrodes, make sure the skin surface is clean and dry. Abrade the skin with an abrasive cream, such as NuPrep (10-30), to remove dead skin. Alternatively, you can also clean the skin with an alcohol swipe and let it dry, but this is not as efficient as the abrasive cream. If necessary, shave excess body hair.

General Recommendations for Positioning Electrodes and Cables

The electrodes are either directly connected to (or “snapped onto”) the sensor, or indirectly connected via an extender cable, often a solution for smaller muscle.

If you use single electrodes with an extender cable, snap the electrodes onto the cable connectors before applying them to the client. Once the electrodes are positioned on the skin, the action of applying the cables may be more difficult or may be uncomfortable for the client.

First, place the active electrodes (blue and yellow) on the examinee. The active electrodes should be placed in line with the muscle fibers, unless specified otherwise. Then place the reference electrode (black connector) anywhere on the body. A bony area with minimal muscle coverage is a good choice. Make sure the electrodes are placed firmly on the skin, and that there is good contact between the skin and electrodes.

Putting a small amount of conductive electrode paste or cream, such as Ten20 (10-20-4T on the center of the electrodes (grey area only) before applying them to the skin may further improve the signal.

Specification Summaries Of Supported Accessories / Hardware

Table below lists Thought Technology accessories for the TT MyoScan.

Accessory	Product Number
	T8720M EXTENDER CABLE 21in, 53cm
	T3402M – Triode electrode (single use): The Triode should be your first choice. It can be snapped directly onto the sensor head, which makes it very easy to use and quick to position. The signal is then amplified right over the muscle site, which dramatically increases the SNR (Signal-to-Noise Ratio) and limits contamination of the SEMG signal from surrounding electromagnetic fields and from movement artifacts generated by wires being pulled.
	T3425 – UniGel electrodes (single use): UniGel electrodes provide complete placement freedom. Their small size allows placement on very tiny muscles (such as SCM). Since they are not attached together, they may adhere better at sites where the skin undergoes great deformation while underlying muscles contract. UniGel electrodes are also pre-gelled thus do not require the addition of conductive gel, which can reduce preparation time. An EMG Extender Cable (T8720M) connects these electrodes to the sensor.
	SA2306 - EMG Headband (single client re-use): The EMG Headband enables easy EMG measurement from the forehead (frontalis), which is a common EMG placement for stress/relaxation biofeedback. The headband accommodates 3 snap electrodes (Ag-AgCl) that work with the EMG Extender Cable (T8720M).
