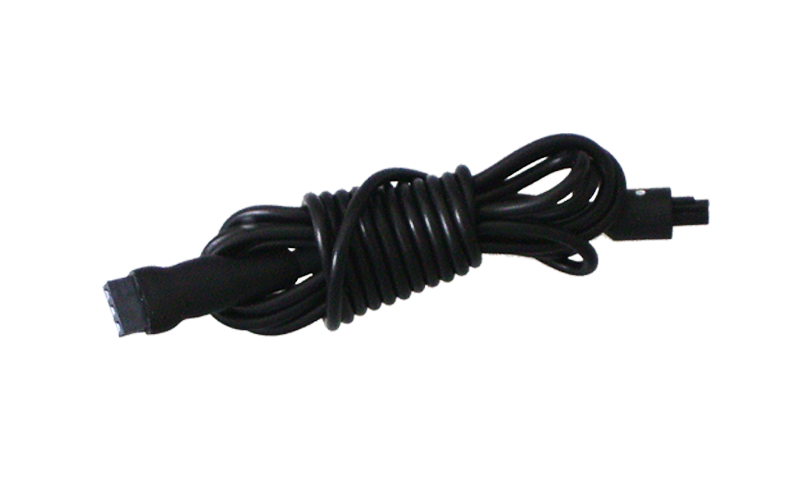

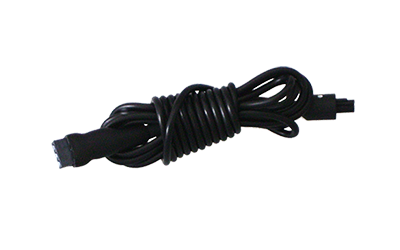

Force Sensor Adapter

Model: T9540

  • The force adapter connects to third party Force sensors of varying sensitivity to measure pressure or force, such as Tekscan,Flexiforce and Imaging Technologies Uniforce.
  • It can be used to monitor tactile activity, or as a foot switch for Gait Analysis.



Product Overview

Force AdapterSensor GraphThis adapter connects to third party Force sensors of varying sensitivity to measure pressure or force, such as Tekscan Flexiforce and Imaging Technologies Uniforce. It can be used to monitor tactile activity, or as a foot switch for Gait Analysis.




Operating Principle

A force sensor is sensitive to load applied to a small area of its surface. Force sensors are available in a number of maximum load ratings, for example 10lbs and 50lbs. When connected to a person or object they sense changes in the applied pressure. The sensor plugs into the adapter which in turn plugs into the encoder.

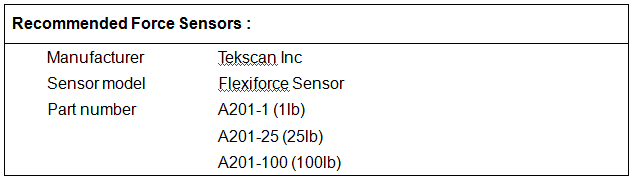

Recommended Sensors

Technical Specifications

  • Length : ~152cm (60”)
  • Weight (approx.) : ~10g
  • Recommended Force Sensors : Manufacturer – Tekscan Inc
    • Sensor model – Flexiforce Sensor
    • Part # A201-1 (1lb)
    • Part # A201-25 (25lb)
    • Part # A201-100 (100lb)
  • Force Sensor Type : Variable Resistive
  • Force Sensor Resistive Range (Rfs) : 1KΩ - 1.4MΩ (native Infiniti modes)
  • Output Voltage Transfer Function : Vout = [301KΩ/(Rfs +575KΩ)] * Vs where Rfs is the resistance of force sensor in KΩ and Vs is sensor supply voltage.
  • Supply Voltage : 7.26VDC nominal
  • Current Consumption : < 1mA @ 7.26 VDC nominal
  • Accuracy : ±1%

This sensor provides a relative measurement of applied pressure. The output voltage signal may be converted to pressure units (PU) for qualitative purposes only. The measured signal does not accurately reflect applied pressure at the sensing component.

Interfacing with 3rd Party Data Acquisition Systems

Recommended Connectivity for Electrical Safety

Thought Technology recommends the use of TT Sensor Isolator ST9405AM when interfacing patient connected sensor(s) to line powered equipment(s) or devices.

Ten20The TT Sensor Isolator ST9405AM is an interface device providing medical grade electrical isolation between the patient connected sensors and the acquisition system. It provides the equivalent of Two Means of Patient Protection under IEC 60601-1, and supplies battery power to the sensors. Using this device ensures Thought Technology sensors are safely interfaced to the analog inputs of line-powered systems such as computers with DAQ cards.

Note that this device isolates only between sensors and the DAQ interface, not between different sensor channels.

The TT Sensor Isolator can interface up to 4 sensors to a DAQ card. TT Sensor Isolator can be connected to the DAQ card in two ways:

  • via two stereo jacks, or
  • via a DB-15 connector; a BNC interface cable (SA9409BNC) or a pigtail cable (SA9409PGT) can be provided with the unit.

Graph

For more detailed information on the Sensor Isolator 4∞, consult the Thought Technology Science Division website or contact the sales department or your distributor.
Division website or contact the sales department or your distributor.


Direct Connectivity for Electrically Isolated Systems

The following notes are provided for qualified users to directly interface Thought Technology sensors with external systems.

WARNING: If the sensor is interfaced to non-Thought Technology devices without the use of a TT Sensor Isolator SE9405AM, an elevated risk of electrical shock may be present. In particular, if a patient-connected sensor is connected to any line powered device(s) or equipment(s), it will be the responsibility of the qualified user to ensure the electrical safety in the setup and to ensure that the device or equipment provides sufficient isolation.

To interface with a sensor, a single sensor cable may be cut in half. Both sides can then be used to make custom interfacing cables by stripping the outer insulation of each required conductor. The sensor cable contains 4 color coded conductors. The table below shows the color coding and pin connector assignment.

Pin Color Code Function Note
1 metal (shield) ground Signal and power ground, connection required.
2 yellow auxiliary (sensor ID) No connection required.
3 green signal Sensor output signal
4 red sensor power Supply voltage, +7.26V referenced to ground. Note: sensor performance may be sensitive to supply voltage.


Sensor Graph

Notes:

1. The nominal supply voltage for this sensor is 7.26V. The sensor can safely be used with a supply voltage of up to 9V.

Recommended Specifications for DAQ Hardware

  • Recommended resolution of 0.15mV (16-bit ADC over 10V span) or better
  • Minimum input range:
    • If connected via SE9405AM Sensor Isolator, choose 0-5V (unipolar) or ±5V (bipolar).
    • If directly connected to DAQ, choose ±5V (bipolar).

Simplified Transfer Function

Transfer FunctionConversion of voltage to pressure units (PU)
(for quantitative purposes only)


The simplified transfer function assumes the sensor is used with the Sensor Isolator, or the supply voltage provided in the user setup is 7.26V nominal.

Product Overview

InclinoTrac is a single inclinometer that measures the inclination angle relative to the ground.

Dual-InclinoTrac is a dual inclinometer that measures relative angle (between back and head, for instance).

InclinoTrac and Dual-InclinoTrac use solid-state micro-machined sensors and microprocessor technology to provide rapid settling and high resolution (0.1°) and accuracy (1.0°). They are the ideal choice for Range of Motion (ROM) assessment.

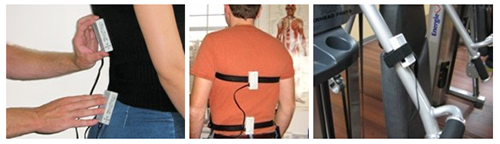

They can be used in various ways: simply put on the examinee, or attached with straps on either the examinee or the workout machine.

Sensor Placement

Operating Principles

This section gives recommendations for ensuring accuracy and consistency of measurement.

Being familiar with the tools
The single inclinometer is called InclinoTrac. The dual inclinometer is called Dual-InclinoTrac (see picture below), and consists of two InclinoTracs connected together.

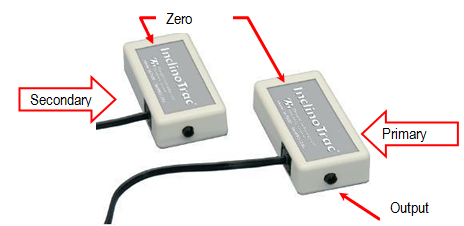

Overview of Sensor



Dual-InclinoTrac
The plug at one end is used to connect the inclinometer to the DAQ. The Zero button at other end is used to mark the neutral zero.

Two devices are connected together by a cable. The connector is on the side of the device (see picture above). The inclinometer connected to the DAQ is then called the “primary”. The other one is called the “secondary”.

The dual inclinometer outputs the angle between the primary and secondary devices. The primary and secondary must be oriented so that the “InclinoTrac” labels face the same way. Either zero button can be used to mark the neutral position.

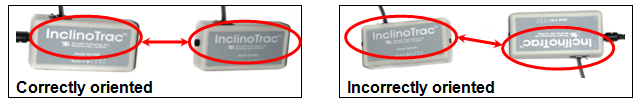

Correct Orientation of Sensor



Calibrating the Inclinometer (zeroing)
Make sure your inclinometer is properly calibrated. The inclinometer must be recalibrated if you press the zero button and the screen does not display the value "0" (zero).

Straps or No Straps?
That is the question. Straps were designed to be used for dynamic ROM assessment, ROM therapy and for the static ROM assessment of the extremities. Holding manually the inclinometers is strongly recommended in the case of static spine assessment. However, straps may be used to assist you in holding the inclinometers (on the head, for instance) and avoid them to slip, or when you assist the examinee in a passive motion.

If you manually handle the inclinometers, make sure you apply a constant pressure throughout the range of motion.

If you use a strap to attach the inclinometer, make sure that the strap is secured and cannot move against the body part during the motion.

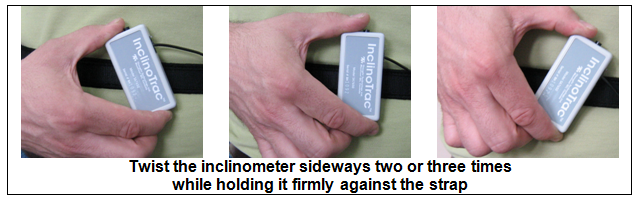

Also check that the inclinometer is firmly fixed to the strap. To do this, press it against the strap and twist it sideways two or three times, so that the hooks and loops are thoroughly enmeshed.

Sensor Use



This will ensure the inclinometer keeps the same orientation against the body part in motion and does not slip from its original position.

Proper orientation
The guide suggests positions of the inclinometers for each range of motion. You may find that different positions are more convenient for you or the examinee.

However, you have to pay attention to the orientation of the inclinometers. The first motion of the two (for instance, “flexion” in “flexion/extension”) must give a positive angle and the second motion (“extension”) a negative angle. The system will rectify the angles in the report according to this rule.

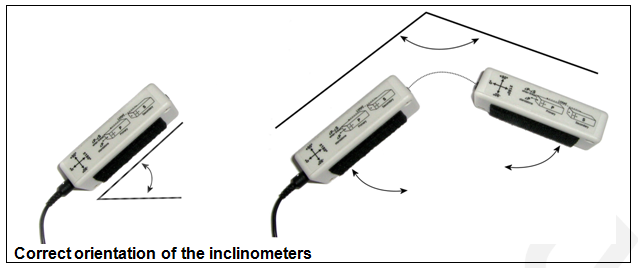

Sesnor Angle

Always keep the side with the inclinometer plug within 45° of the vertical plane and parallel to the plane of motion.

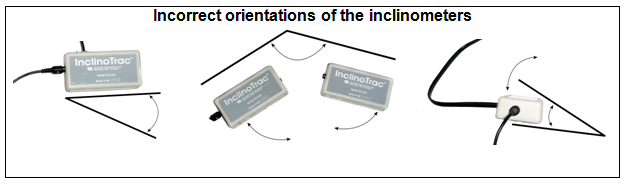

Incorrect sensor orientation



Sensor Placement

This section proposes typical sensor placements with AMA normative data (Andersson Gunnar B. J. & Cocchiarella Linda. (2007). Guides to the Evaluation of Permanent Impairment, 6th Edition. American Medical Association).

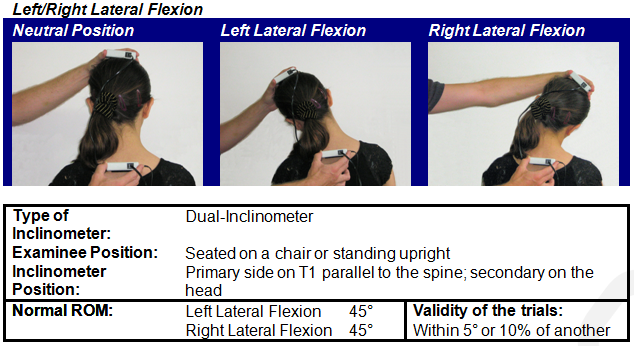

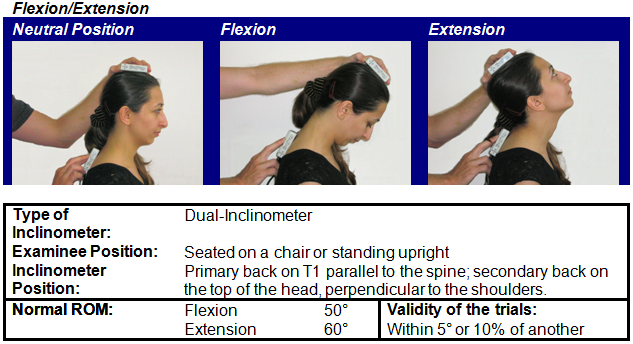

SROM – Cervical Spine

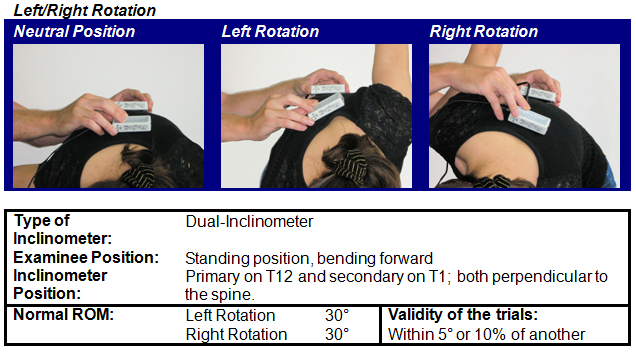

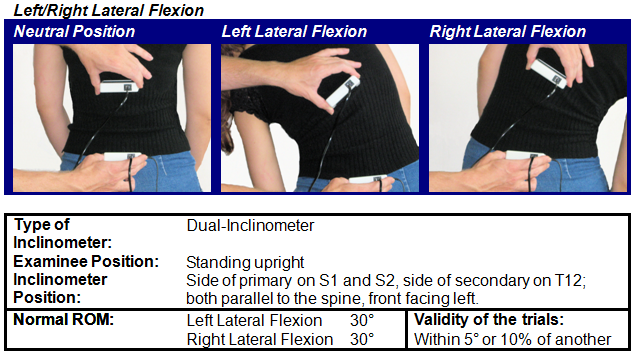

SROM – Thoracic Spine

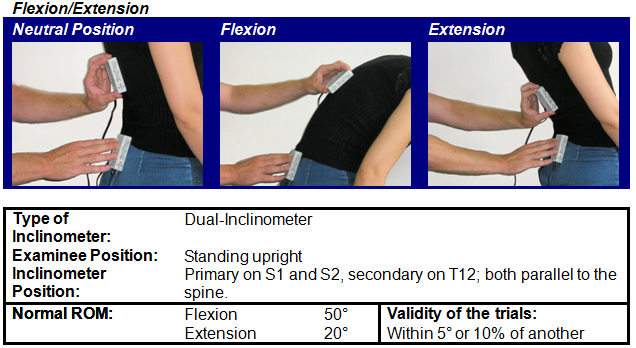

SROM – Lumbar Spine

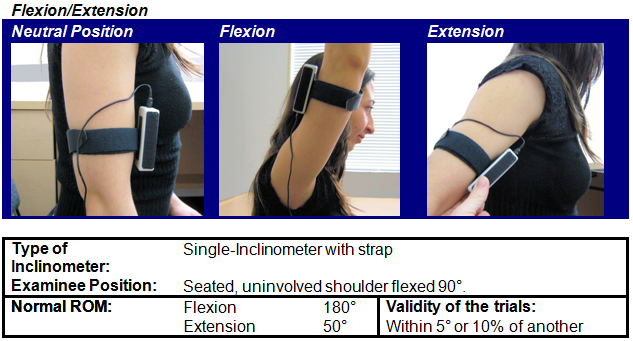

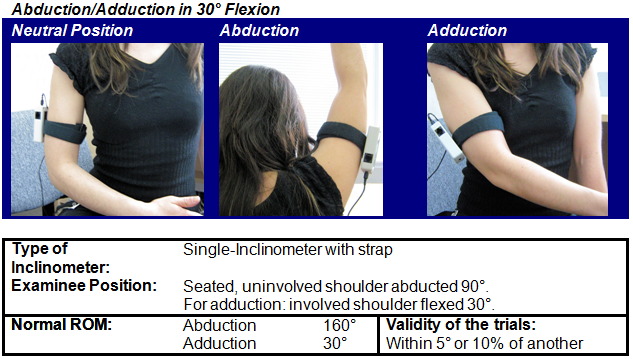

SROM – Shoulder







SROM – Elbow

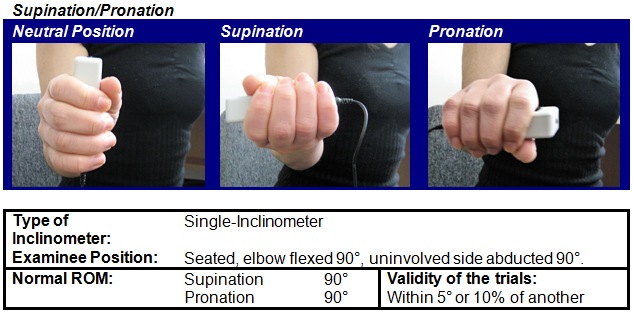

SROM – Forearm

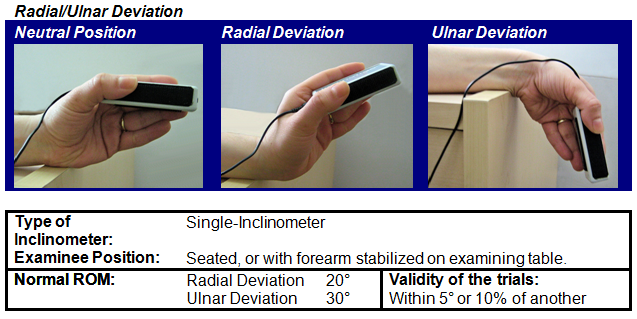

SROM – Wrist

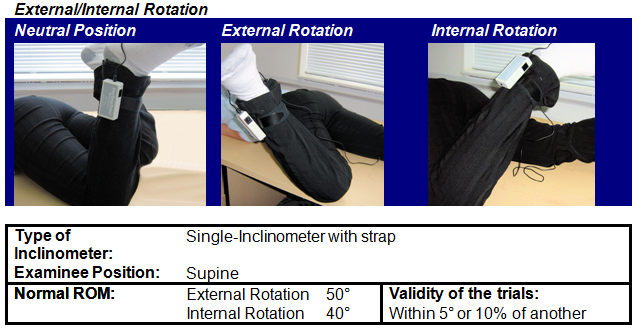

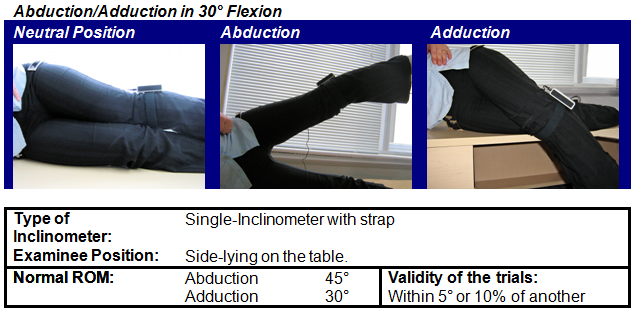

SROM – Hip







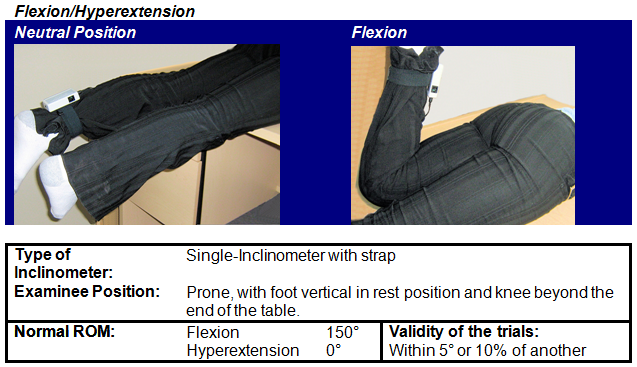

SROM – Knee

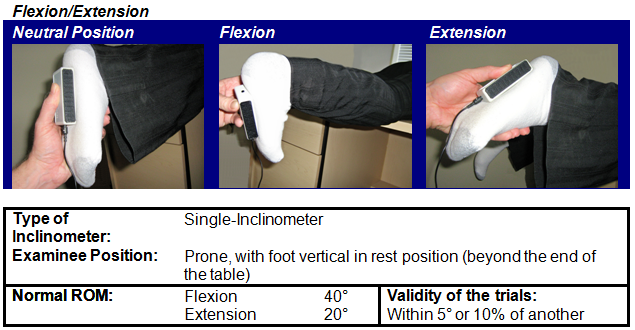

SROM – Ankle



Technical Specifications

  • Length : ~152cm (60”)
  • Weight (approx.) : ~10g
  • Recommended Force Sensors : Manufacturer – Tekscan Inc
    • Sensor model – Flexiforce Sensor
    • Part # A201-1 (1lb)
    • Part # A201-25 (25lb)
    • Part # A201-100 (100lb)
  • Force Sensor Type : Variable Resistive
  • Force Sensor Resistive Range (Rfs) : 1KΩ - 1.4MΩ (native Infiniti modes)
  • Output Voltage Transfer Function : Vout = [301KΩ/(Rfs +575KΩ)] * Vs where Rfs is the resistance of force sensor in KΩ and Vs is sensor supply voltage.
  • Supply Voltage : 7.26VDC nominal
  • Current Consumption : < 1mA @ 7.26 VDC nominal
  • Accuracy : ±1%


Interfacing with 3rd Party Data Acquisition Systems

Recommended Connectivity for Electrical Safety

Thought Technology recommends the use of TT Sensor Isolator ST9405AM when interfacing patient connected sensor(s) to line powered equipment(s) or devices.

Ten20The TT Sensor Isolator ST9405AM is an interface device providing medical grade electrical isolation between the patient connected sensors and the acquisition system. It provides the equivalent of Two Means of Patient Protection under IEC 60601-1, and supplies battery power to the sensors. Using this device ensures Thought Technology sensors are safely interfaced to the analog inputs of line-powered systems such as computers with DAQ cards.

Note that this device isolates only between sensors and the DAQ interface, not between different sensor channels.

The TT Sensor Isolator can interface up to 4 sensors to a DAQ card. TT Sensor Isolator can be connected to the DAQ card in two ways:

  • via two stereo jacks, or
  • via a DB-15 connector; a BNC interface cable (SA9409BNC) or a pigtail cable (SA9409PGT) can be provided with the unit.

Graph

For more detailed information on the Sensor Isolator 4∞, consult the Thought Technology Science Division website or contact the sales department or your distributor.
Division website or contact the sales department or your distributor.


Direct Connectivity for Electrically Isolated Systems

The following notes are provided for qualified users to directly interface Thought Technology sensors with external systems.

WARNING: If the sensor is interfaced to non-Thought Technology devices without the use of a TT Sensor Isolator SE9405AM, an elevated risk of electrical shock may be present. In particular, if a patient-connected sensor is connected to any line powered device(s) or equipment(s), it will be the responsibility of the qualified user to ensure the electrical safety in the setup and to ensure that the device or equipment provides sufficient isolation.

To interface with a sensor, a single sensor cable may be cut in half. Both sides can then be used to make custom interfacing cables by stripping the outer insulation of each required conductor. The sensor cable contains 4 color coded conductors. The table below shows the color coding and pin connector assignment.

Pin Color Code Function Note
1 metal (shield) ground Signal and power ground, connection required.
2 yellow auxiliary (sensor ID) No connection required.
3 green signal Sensor output signal
4 red sensor power Supply voltage, +7.26V referenced to ground. Note: sensor performance may be sensitive to supply voltage.


Sensor Graph

Notes:

1. The nominal supply voltage for this sensor is 7.26V. The sensor can safely be used with a supply voltage of up to 9V.

Recommended Specifications for DAQ Hardware

  • Recommended resolution of 0.15mV (16-bit ADC over 10V span) or better
  • Minimum input range:
    • If connected via SE9405AM Sensor Isolator, choose 0-5V (unipolar) or ±5V (bipolar).
    • If directly connected to DAQ, choose ±5V (bipolar).

Simplified Transfer Function

Transfer FunctionConversion of voltage [V] to output angle in degrees.


Technical Specifications

Length : ~152cm (60”)
Weight : ~10g
Recommended Force Sensors :Manufacturer – Tekscan Inc Sensor model – Flexiforce Sensor
Part # A201-1 (1lb)
Part # A201-25 (25lb)
Part # A201-100 (100lb)
Force Sensor Type :Variable Resistive
Force Sensor Resistive Range (Rfs) :1KΩ - 1.4MΩ (native Infiniti modes)
Output Voltage Transfer Function :Vout = [301KΩ/(Rfs +575KΩ)] * Vs where Rfs is the resistance of force sensor in KΩ and Vs is sensor supply voltage.
Supply Voltage :7.26VDC nominal
Current Consumption : < 1mA @ 7.26 VDC nominal
Accuracy : ±1%
